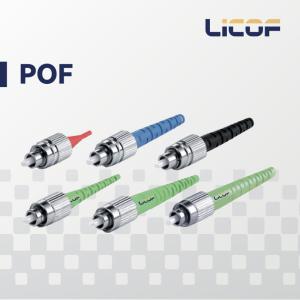

The FC fiber optic connector is a single-core connector commonly used in fiber optic communications. Its external reinforcement employs a metal sleeve with a threaded locking mechanism, making it suitable for high-vibration environments. The fiber interface uses a ceramic ferrule with a spherical (UPC) or angled (APC) end-face. FC fiber connectors are currently primarily used in data communications, telecommunications, measurement equipment, and single-mode lasers.
Table1 FC Main Parameters
| Category | Specification Requirements |
| End-Face Requirements | 400X Compliant with IEC 61300-3-35 |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥45dB (SM, PC); ≥60dB (SM, APC) |
| Repeatability | ≤0.2dB |
| Ferrule Type | PC, UPC, APC with optional floating end |
| Covering | 0.9Hytrel, 2.0/3.0mm PVC, armored empty conduit, etc. available |
| Operating Temperature | -40°C to +85°C |
| Compliance Standard | YD_T 1272.4-2018 |
Main Features
High stability and reliability.
Low insertion loss, high return loss.
Excellent polishing standards.
End-face geometry parameters comply with GR-326Core.
Available in single-core or dual-core cables with Ф0.9, Ф2.0, or Ф3.0 diameters.
Applications
Telecommunications networks
Cable television
Gigabit Ethernet
Active or passive equipment terminals
Industrial, medical, and military applications
Dimensions Of The External Structure
